Part 3 — Products of Work

3.01 General Notes

  1. Project record lists representative completed and current commercial fire alarm work performed under ACR 3018303; rows marked "in progress" are under construction at time of issue.
  2. Owner and general contractor references available on request for listed projects.
  3. All photographs on this sheet depict TX Fire Pros field work. No stock imagery is used.
  4. Additional project detail — device counts, panel schedules, AHJ, acceptance documentation — furnished on request.

3.02 Project Record

No. Project / Facility City Scope of Work Year
01 Greenleaf campus — Splendora ISD (new construction; 2-story school w/ gym) Splendora Voice-evacuation fire alarm installation — 516 devices: ~265 ceiling speaker/strobes & strobes, ~240 addressable SLC devices (detectors, modules, pull stations) over 2 levels; SLC/NAC/SPKR as-builts furnished. Labor-only installation sub to FireTron, Inc. 2025
02 Harris County Insurance Center (2-story county office building) Baytown New addressable fire detection system — Notifier NFW-100X FACP w/ cellular communicator; 103 field devices: 35 photoelectric smokes, 1 heat, 3 pull stations, 35 ceiling horn/strobes, 29 ceiling strobes on 4 NACs; as-builts furnished. Labor-only installation sub to Advantage Interests, Inc. 2026
03 City of Pearland — Hillhouse Rd. Service Center, Parks Building & Fleet Building (two-building municipal service center; GC Teal Construction) Pearland Two independent addressable fire alarm systems, one per building — Silent Knight 6700 FACP, 5496 NAC expander & dual-path cellular communicator in each; 57 field devices total: 42 horn/strobes & strobes (incl. weatherproof), pull stations, smoke detectors, and monitor/control modules for sprinkler waterflow & tamper, and duct detector HVAC shutdown. Labor-only installation sub to Advantage Interests, Inc. 2026
04 METRO — Texas Medical Center Transit Center, elevator replacement (GC Flintco) Houston Dedicated-function elevator recall system — one Notifier NFW-100X serving 4 elevator banks in 4 separate two-story structures across the transit center site; 34 field devices: lobby smoke & all-weather heat detectors, 12 relay modules for primary/alternate recall and cab signal on each elevator, 8 monitor modules, pull station; direct-burial cabling between machine rooms with data-circuit surge protection. Labor-only installation sub to Advantage Interests, Inc. 2026
05 The Woodlands Methodist Church — Loft Building renovation, Phases 1 & 2 (GC Brookstone Construction) The Woodlands Fire alarm renovation on a live Siemens XLS-250 addressable system in an occupied 2-story, fully sprinklered church campus building — 297 devices: voice-evacuation amplifier upgrade (50 W to 100 W), new SLC loop controller, new & relocated speaker/strobes and strobes (approx. 90 speakers on 4 circuits), smoke/heat/duct detection, pull stations, door-holder release, elevator-recall and sprinkler-monitoring interface modules; phased to keep the existing system in service. Labor-only installation sub to Fire-Safe Protection Services. 2026 — in progress

3.03 Photo Plates — Field Work

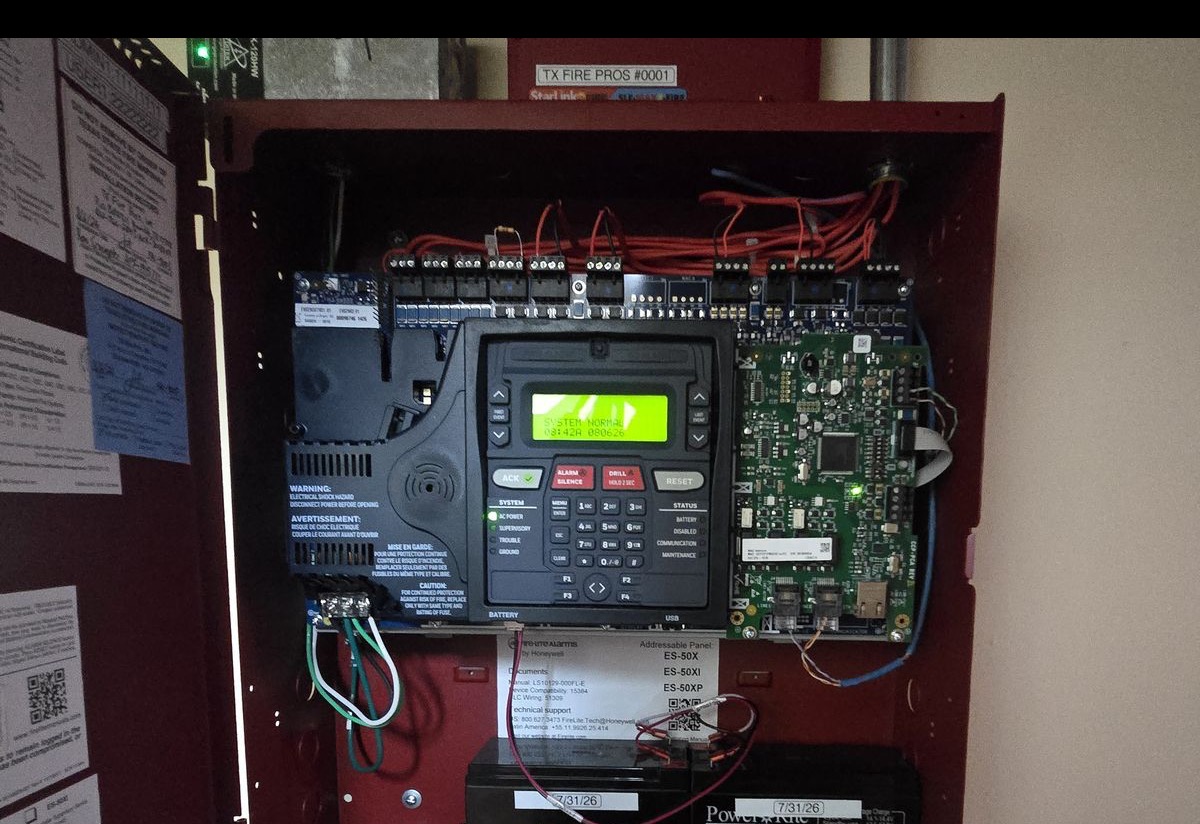

Open addressable fire alarm control panel with field wiring landed on its terminals, a TX Fire Pros-tagged cellular communicator above, and dated standby batteries
PL-01FACP cabinet — panel terminations & wire dressing

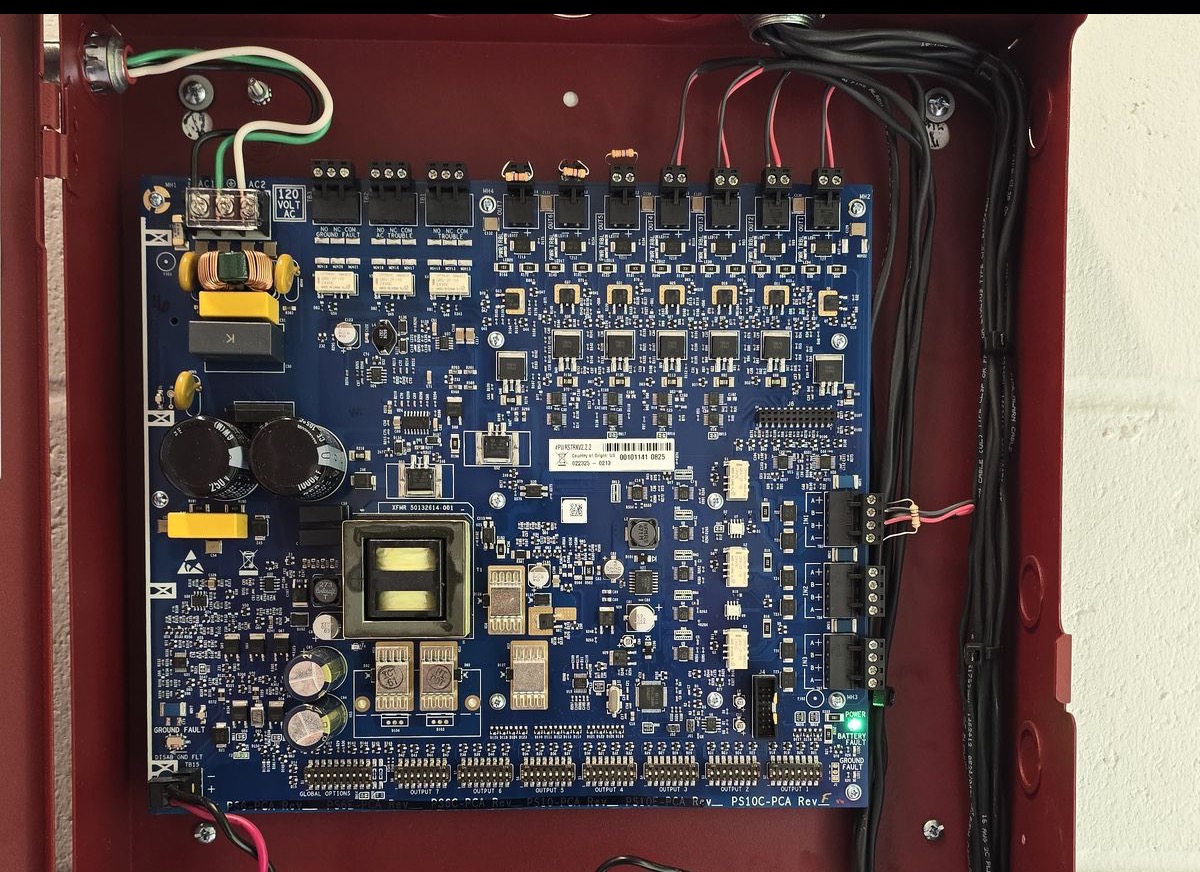

Open NAC power supply with field conductors landed on its outputs and bundled neatly down the side of the cabinet
PL-02NAC power supply — field wiring landed & dressed

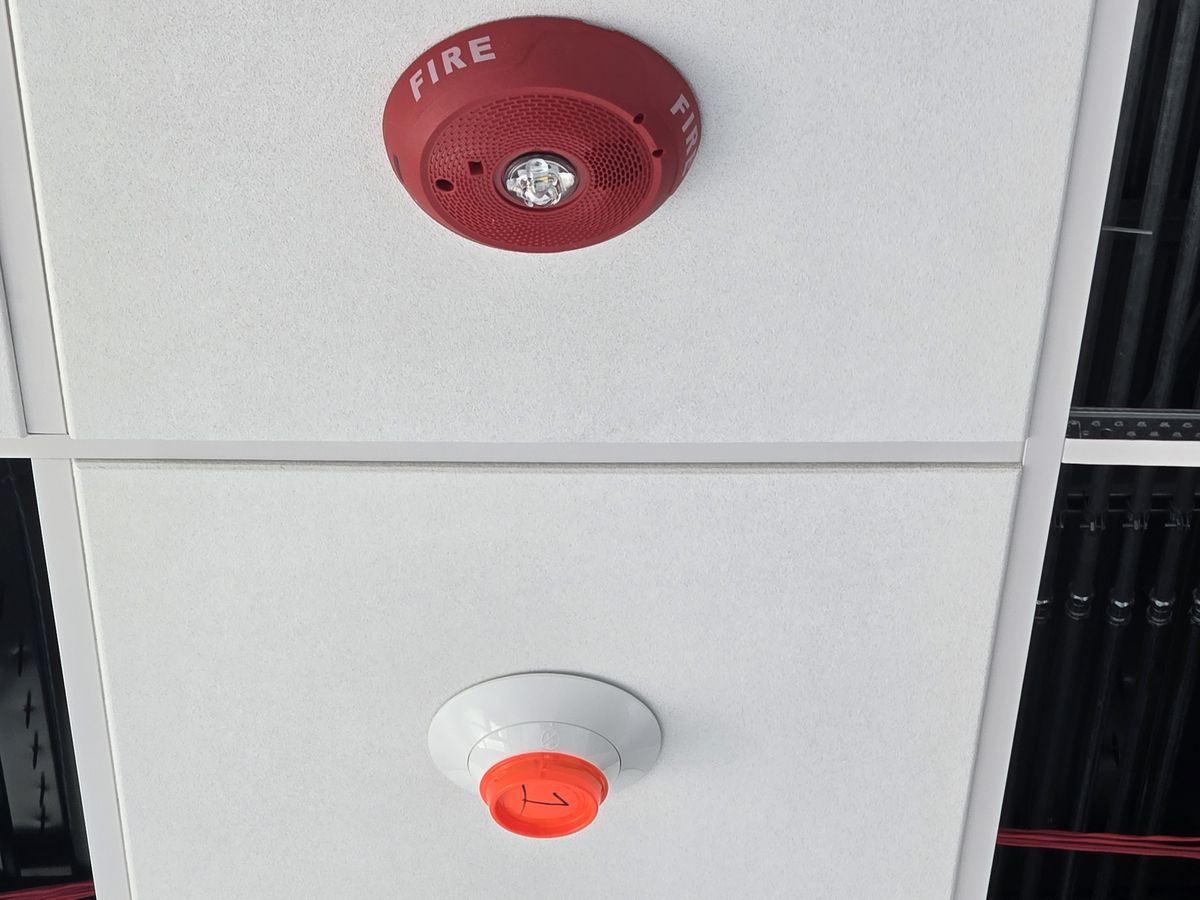

Ceiling-mounted horn/strobe and smoke detector installed in adjacent acoustic ceiling tiles, the detector's protective dust cover still fitted
PL-03Horn/strobe & smoke detector — ceiling install (dust cover on, pre-acceptance)

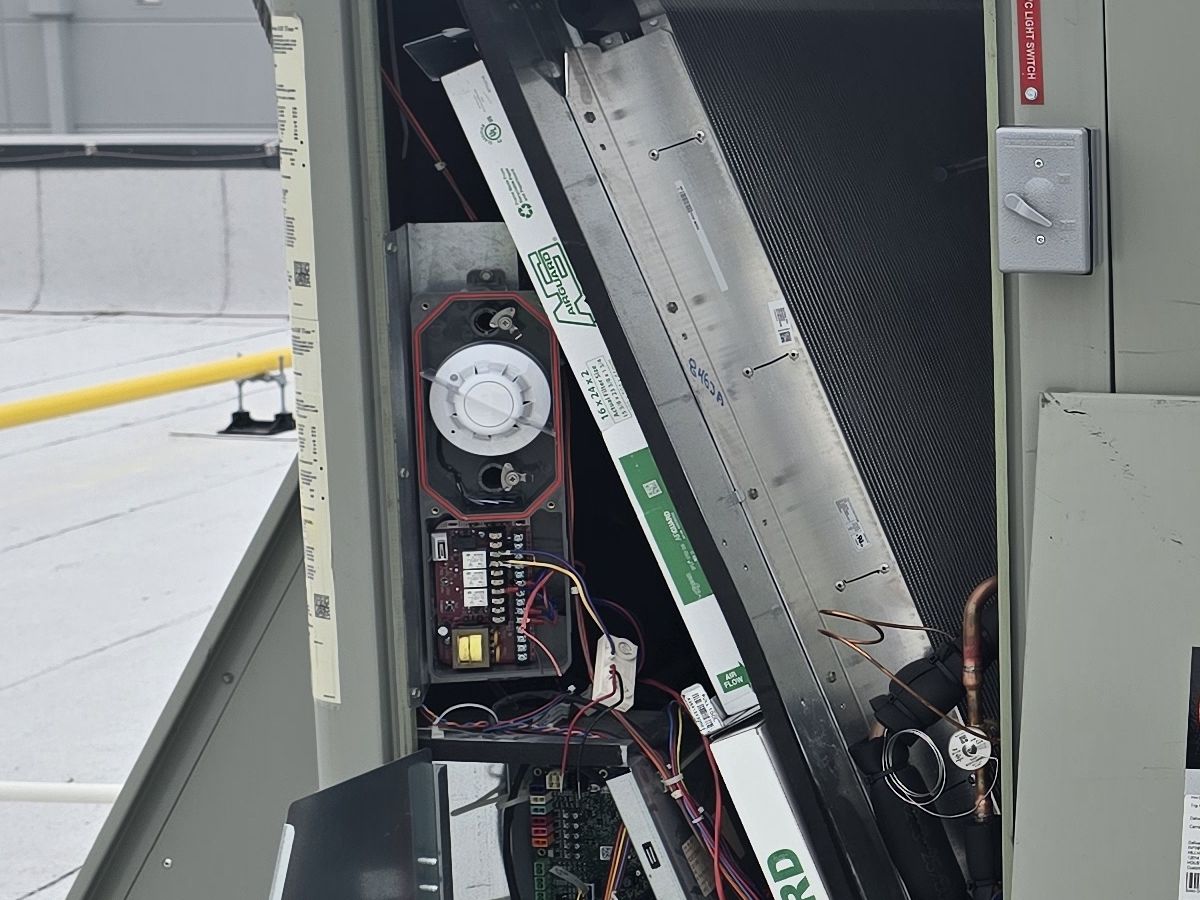

Duct smoke detector installed inside a rooftop HVAC unit with the service panel open
PL-04Duct smoke detector — rooftop unit

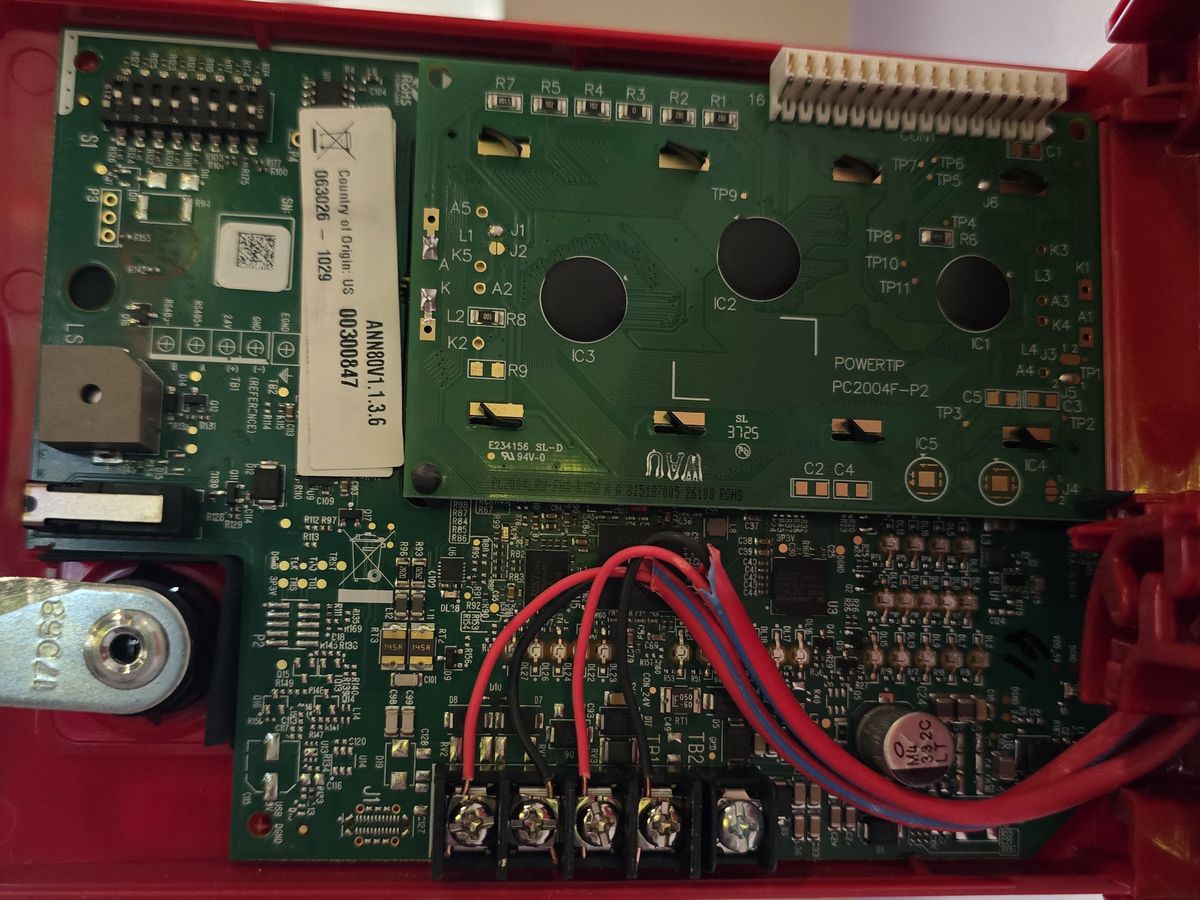

Remote annunciator circuit board with field wiring landed on its terminal block
PL-05Remote annunciator — field wiring landed

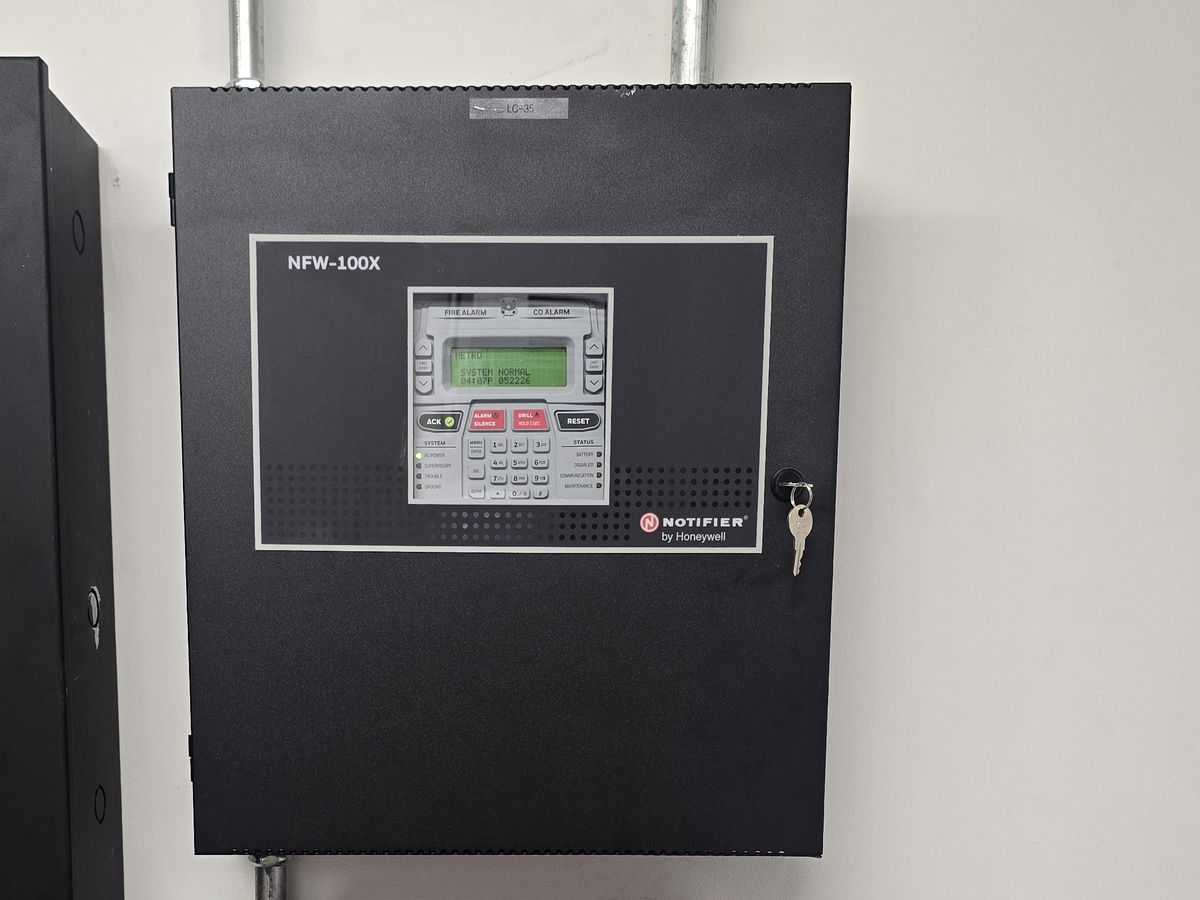

Completed wall-mounted fire alarm control panel with its display showing system normal
PL-06Addressable FACP — completed install, system normal
